2/6/11 Headers arrive.

Got them on M3forum from member "///M3AN ONE".

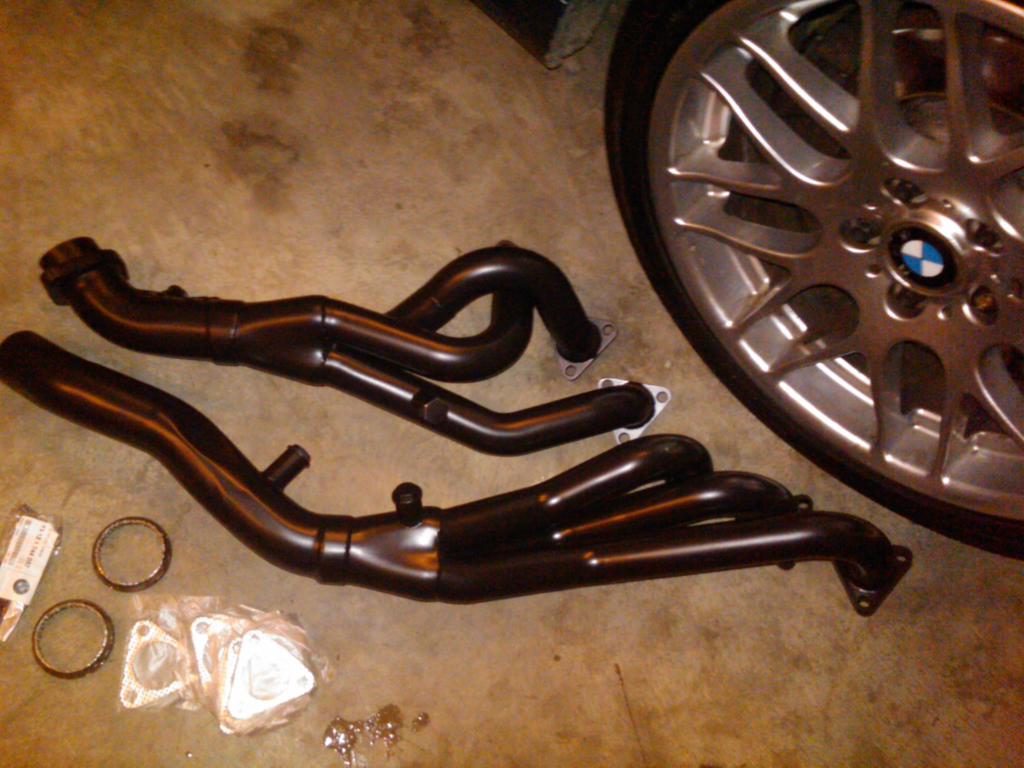

Details on the headers:

These are JVT/SS V2 rep headers with the thicker flanges. You will have to swap your studs to the longer E36 studs which I will include. They are made from T-304 Stainless Steel and have 4 bungs for 02's and 1 bung for the EGT. I make all the adjustments to these so they will line up no problem! I re-weld the two 02 bungs on the shorter header so they will clear the heatshield. I also make a groove on the longer header near the bottom so it will clear the FCAB. These have strong tig welding, a 3-2-1 design, mandrel bent piping and CNC machined flanges.

Here are the specs:

Flange = 7/16"
Gauge = 1.5 MM
Runners = 1 1/2"
Collector = 1.75"
Outlet = 2.1"

Ceramic coating info:

These are coated by Accessories Plus. They do great work! They have already coated headers on other local member's M3's as well as a few sets I have already sold here on the boards. They bake them up to 750 degrees and are ceramic coated to protect against temps up to 1600 degrees.

What's included:

1 set of Ceramic coated Stainless Steel headers
6 AFTERMARKET primaries gaskets
2 AFTERMARKET o-rings and slip-fit flange
18 OEM E36 studs


I HIGHLY RECOMMEND using OEM gaskets for the flanges as well as OEM O rings. You can buy the Tischer header gasket kit HERE Make sure you get the E36 studs instead of E46 ones.
