Various pics of my LS1 RX7
This is the Hinson modified fuel tank; capacity has been decreased by 5 gallons; 15 gallons total.
Here is a stock tank:
Baffles inside the tank:

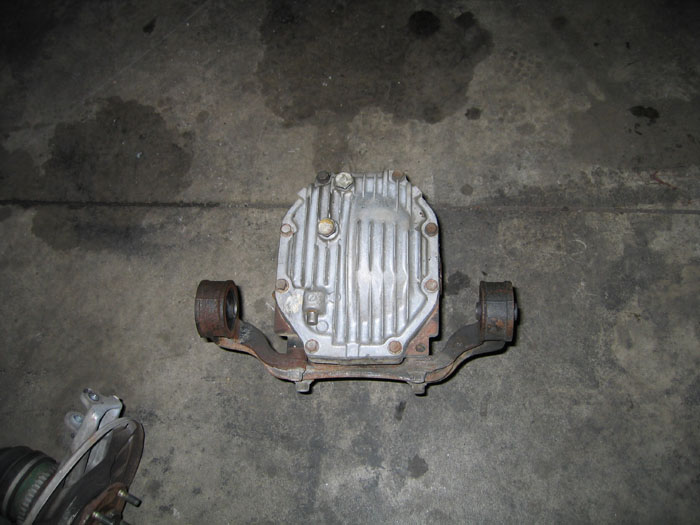

Kaaz differential while 4.10's were being removed and replaced with 3.90's:
These shots show the axles NOT fully seated in the rear.
Pillow bushings prone to breaking down/locking up. RX7 has 6 of them.
This is the tranny mount attached to the chassis
Hinson's bump-steer kit:
Under shot shows "mid length" headers and hinson K member.
This shows where trans mount connects to floorpan.
3.5 inch exhaust into bullet muffler into hooker aerochamber muffler into turndown. not pretty.
Aluminum driveshaft and Hinson torque arm:
I installed a bullet muffler in front of the existing hooker aerochamber muffler:

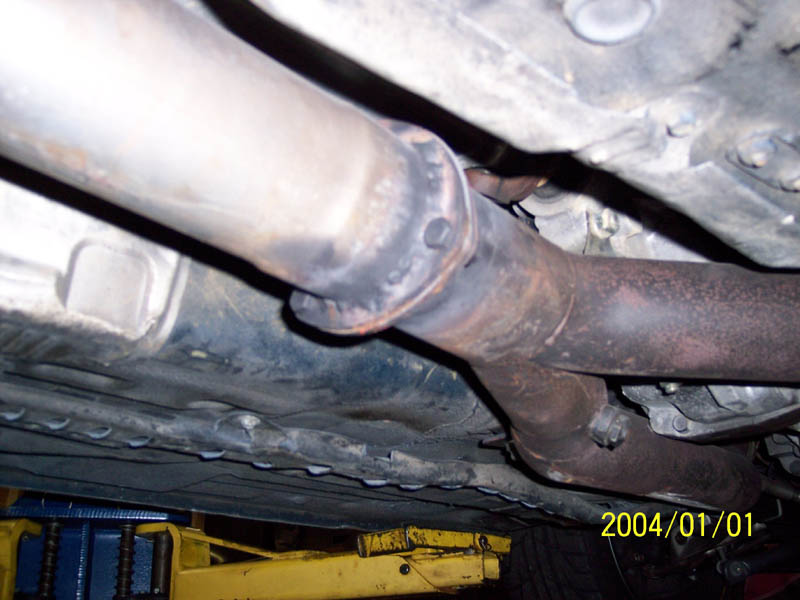

Below - had to weld in 3 bolt flange to connect Y pipe to Intermediate pipe:
Below - clearancing necessary for 3.5 inche exhaust:
Below - Borla XR-1 3.5 inch polished stainless steel turndown (part #20145):
Line Loc installed, retains ABS:
4/11/07 Hyperion designed this fuel bucket cover to prevent fuel slosh and fuel starvation in prolonged high G force turns:
Thie is the Automotive Adjustable Fuel Pressure Regulator. The black sending unit coming out of the center is for Autometer Fuel Pressure Gauge.
